Planning application drawings & documentation

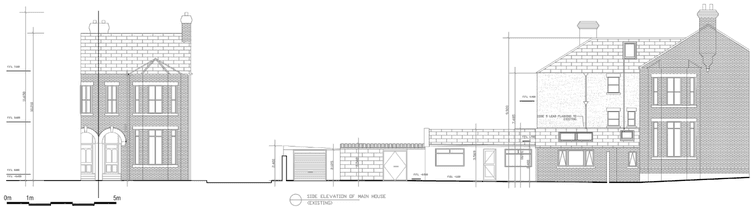

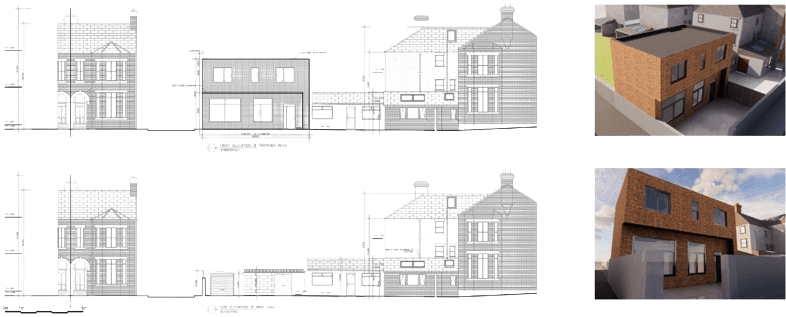

Submitting a planning application in Ireland requires a comprehensive set of drawings and supporting documentation that clearly communicates your proposal to the local authority. Our team prepares high quality planning application drawings that meet the requirements of the Planning and Development Regulations, ensuring that your submission is accurate, compliant, and professionally presented. What Planning Application Drawings Include We create all of the required drawings to support your application, such as: • Site layout plans that show boundaries, access, and landscaping • Floor plans that illustrate the internal arrangement of spaces • Elevations and sections that highlight the scale and appearance of the building • Location maps that set the proposal in context These drawings demonstrate not only the technical details of your design but also how the project integrates with its surroundings. Tailored to Local Authority Requirements Every planning authority in Ireland follows its own development plan and local guidelines. Our experience allows us to adapt each application to meet these specific requirements. From showing accurate site boundaries to addressing how the design responds to neighbouring properties, we ensure your drawings and documentation meet validation standards and give your project the best chance of approval. Complete and Compliant Documentation Planning applications often require more than just drawings. Depending on the scale and nature of the project, additional documents may be needed such as: • Planning reports and design statements • Shadow or daylight studies • Environmental or conservation assessments We prepare and coordinate all of this information so that your submission is complete and ready for review, minimising delays or requests for additional material from the council. Supporting Homeowners For homeowners, this service removes the stress of navigating the planning system and ensures that extensions, renovations, or new homes are represented correctly. For developers and commercial clients, it provides a structured and reliable approach to managing more complex applications. A Strong Foundation for Approval By combining design expertise with a detailed understanding of Irish planning regulations, we make the application process straightforward and efficient. With accurate drawings and comprehensive documentation, your project is positioned for the strongest possible chance of approval from the very beginning.
